Pioneer Quantum Ultra Dual Zone Minisplit Review for Two-Room Comfort

All featured products are selected by our editors and may include affiliate links. If you purchase through these links, we may earn a commission.

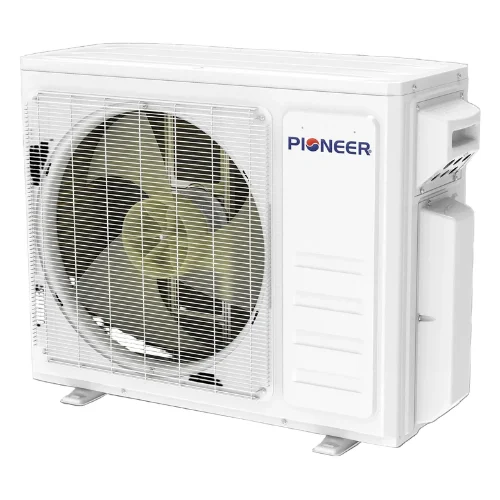

A two-room mini-split looks simple until capacity, zoning, electrical work, and winter performance enter the decision. Pioneer Quantum Ultra YN020GLSI24M2G combines two circuits with an 18000 BTU cooling rating, a 20000 BTU heating rating, and 24 SEER2 ductless efficiency.

This review explains where the system fits well, where shared operation creates limits, and which installation details can shape long-term performance.

What Makes This Pioneer Mini Split Suitable For Two Separate Spaces

How The Dual Zone Design Manages Two Indoor Units

Indoor options include wall-mounted, ceiling cassette, concealed ducted and 18000 BTU flex console. Combinations include 9000 plus 9000 BTU, 12000 plus 9000 BTU, 12000 plus 12000 BTU and 18000 plus 9000 BTU. The outside portion connects two indoor units yet allows each room to be a different temperature.

That flexibility is useful because no two rooms will be the same. A bright room might use more power than a dark bedroom. The condenser reacts to combined demand, not pushing both indoor units to run at full capacity.

What The Heating And Cooling Capacity Means In Daily Use

Rated ductless output 18000 BTU cooling and 20000 BTU heating. The associated load range is more critical. 12000 to 27000 BTU. Pioneer is able to provide indoor capacity beyond the rated outdoor output since the two rooms do not always have maximum demand at the same time.

So an 18000 + 9000 pairing can work for unequal rooms, but the outdoor unit still has a finite ceiling. In the event of excessive simultaneous demand, available capacity may be split amongst rooms. Any additional indoor capacity should be considered as flexibility and not as more condenser output.

How The 24 SEER2 Rating Affects Efficiency

With ductless indoor units, the condenser is rated at 24 SEER2 and 13 EER2. Ducted combinations are rated at 21 SEER2 and 12 EER2. Indoor unit style therefore changes system-level efficiency, which deserves attention if concealed installation is being considered.

What People Should Know Before Choosing This Split AC

Which Indoor Units Can Work With This Outdoor Section

Pioneer lists compatible 9000, 12000, and 18000 BTU indoor sections across wall mounted, ceiling cassette, and concealed designs. The 18000 BTU size also has a floor and ceiling flex option. A 9000 BTU wall unit is specifically listed as compatible with YN020GLSI24M2G.

Compatibility needs to be validated by model. Multi-zone equipment is subject to permitted controls, refrigerant requirements and capacity combinations. A physically comparable indoor unit is NOT sufficient.

Why Correct Room Sizing Still Matters

Split AC can modulate, but modulation can’t fix bad sizing. Room area , insulation , windows , ceiling height , climate and internal heat are all factors that affect load . Even if the floor area is the same, two spaces with distinct conditions may require different indoor sizes.

How This Split Air Conditioner Performs Across Changing Weather

The outdoor unit can heat as low as minus 13 degrees Fahrenheit and cool as high as 131 degrees Fahrenheit. Cold climate classification too, Pioneer listings. These constraints do allow for more seasonal use, but real comfort depends on room size and building heat loss.

Buy Now - $1,298.00

Reddit discussions often center on cold weather performance, installation quality and long-term performance. They're different experiences. Some have had years of reliable service; others are questioning capacity estimates or whether they can get parts in the future. Hence, published ratings need to be viewed more as operational bounds rather than promises on each property.

How Much Control The Two Zones Actually Provide

How Each Room Can Have Its Own Temperature Setting

Each indoor section can respond to its own room temperature. One room can call for more output while another reduces output or stops after reaching its set temperature. The way of operation is a major constraint. Both active zones are either cooling or heating. In its product FAQs, Pioneer certifies that one room cannot chill and another heat from the same condenser.

For many homes, shared mode is workable because nearby rooms usually need the same seasonal function. Spaces with sharply different solar exposure or heat loads deserve more careful planning.

What Installation Requires Before The System Can Run Properly

What The 230 Volt Power Requirement Means

This condenser uses 208 to 230 volt single-phase power. Pioneer lists a maximum 25-amp double-pole breaker. Its product questions also state that a dual 12000 BTU setup can use a 20 amp double pole breaker with 12 AWG conductors. Electrical work should follow current documentation and local requirements.

How Lineset Length And Refrigerant Preparation Affect Installation

The unit comes precharged with R454B, for up to 50' of combined attached lineset, with Pioneer guidance for up to 25' per circuit. Precharged does mean no evacuation. Pioneer says that each installation zone must be vacuumed before the factory charge is removed.

That jives with a common Reddit topic about pre-charged systems. People often ask us why we still have to Hoover. Evacuation eliminates air and moisture from installed lines while the refrigerant remains isolated in the condenser until the valves are opened.

What Owners Should Consider About Reliability And Maintenance

Installation quality may affect long-term reliability. Poor flare connections, moisture in the lines, wiring problems or hurried commissioning can cause subsequent failures. One Reddit account from a Pioneer installer said the system was functioning acceptably, but felt some of the earlier installation instructions were less than ideal, reiterating the importance of new manuals and cautious commissioning.

Pioneer provides service documents, exploded parts diagrams, manuals, and product support. Warranty coverage reaches up to five years for parts and the compressor, with registration required within 90 days of purchase. That deadline should be handled soon after installation.

FAQs

Can One Indoor Unit Be Installed Before The Second?

Yes. Pioneer SAYS one indoor device can work first, with the second port kept for future usage. That can help with staged renovation, if the eventual second head still forms an acceptable combination.

Can One Zone Heat While The Other Zone Cools?

No. Both connected zones must share the same heating or cooling mode, even though each room can have a different temperature setting.

Do Both Refrigerant Lines Need To Be Vacuumed?

Yes. Each installed circuit needs evacuation before stored refrigerant is released into the lines. Factory precharging does not remove that installation step.

Its main tradeoff is clear. Two zones share one operating mode and one outdoor capacity pool. When those limits suit the property, Pioneer Mini Split offers a practical two-room heating and cooling setup with flexible indoor unit choices and strong efficiency potential.
